Performance Study of a Fluidic Hammer Controlled by an Output-Fed Bistable Fluidic Oscillator


Performance Study of a Fluidic Hammer Controlled by an Output-Fed Bistable Fluidic Oscillator - Descarga este documento en PDF. Documentación en PDF para descargar gratis. Disponible también para leer online.

1

Key Laboratory of Ministry of Land and Resources on Complicated Conditions Drilling Technology, Jilin University, Changchun 130026, China

2

College of Construction Engineering, Jilin University, Changchun 130026, China





*

Authors to whom correspondence should be addressed.



Academic Editor: Francisco José Galindo Rosales

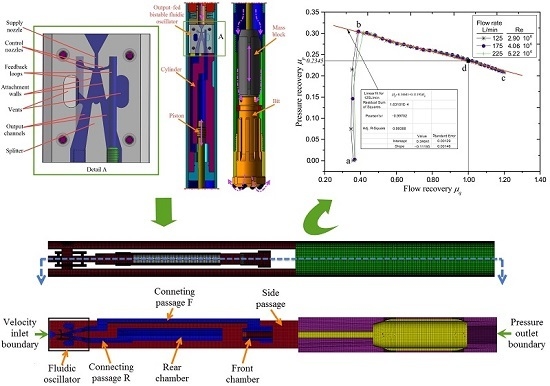

Abstract Using a no-moving-component output-fed bistable fluidic oscillator to control fluid flows into a parallel path has been recognized for a considerable time, but as yet it is not so widely adopted as its obvious benefits would deserve. This may be attributed to the encountered problems associated with its jet behavior, complicated by its loading characteristics. In order to investigate a typical case for the application of the output-fed fluidic oscillator, this paper elaborates on the computational fluid dynamics CFD simulation method for studying the performance of a fluidic hammer controlled by an output-fed bistable fluidic oscillator. Given that couple mechanism exists between the flow field in the fluidic oscillator and the impact body, dynamic mesh technique and a user-defined function written in C programming language were used to update the mesh in the simulations. In terms of the evaluation of performance, the focus is on the single-impact energy and output power of the fluidic hammer in this study, to investigate the effect of different parameters of the impact body on them. Experimental tests based on the noncontact measuring method were conducted to verify the simulation results, by which the accuracy and reliability of this CFD simulation method was proved. View Full-Text

Keywords: output-fed bistable fluidic oscillator; fluidic hammer; CFD; dynamic mesh output-fed bistable fluidic oscillator; fluidic hammer; CFD; dynamic mesh





Autor: Xinxin Zhang 1,2, Jianming Peng 1,2,* , Dong Ge 1,2, Kun Bo 1,2,* , Kun Yin 1,2 and Dongyu Wu 1,2
